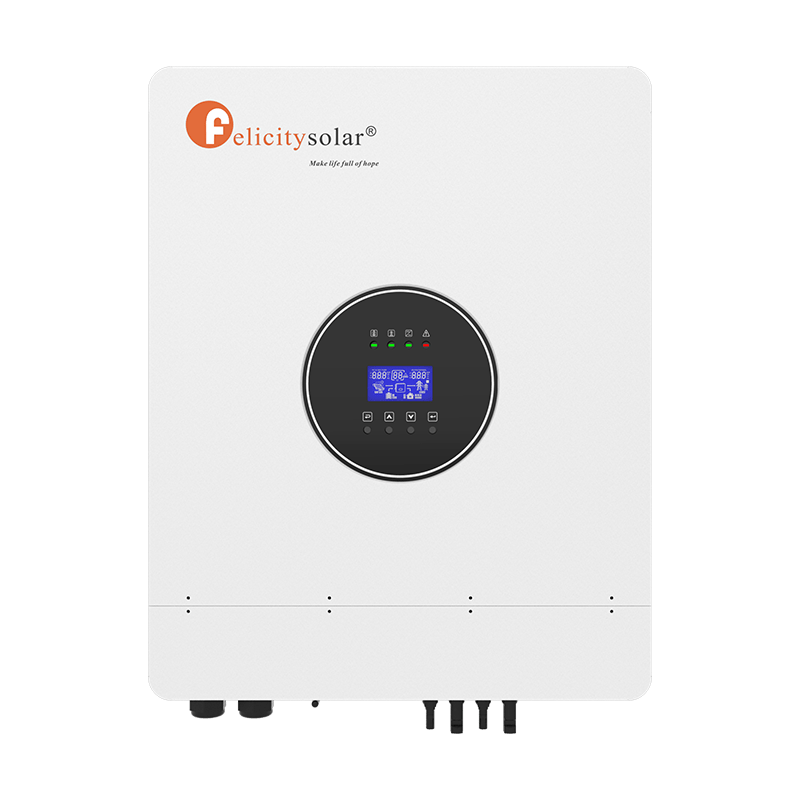

Felicity IVEM12048 – 12kW Off-Grid Hybrid Inverter. This 12000VA/12000W unit combines a pure sine wave inverter, dual MPPT solar charge controllers, and an intelligent battery charger into one advanced energy management system. It supports 48V battery banks and features a high-voltage MPPT with a 90-450V DC operating range and 500V max PV open-circuit voltage. Maximum PV input power is 15000W across two PV inputs (7500W each), with a massive 240A total solar plus utility charging current. Key capabilities include parallel connection of up to 6 units for scalable power expansion, built-in WiFi for remote monitoring via mobile app, and battery-free operation using PV or AC input. It accepts 90-280VAC grid or generator input.

Specifications:

Rated Output Power: 12000 VA / 12000 W

Nominal DC Input Voltage: 48 VDC

Nominal AC Output Voltage: 230 VAC (±5%)

Output Waveform: Pure Sine Wave

PV Operating Voltage Range: 90 – 450 VDC

Max. PV Open Circuit Voltage: 500 VDC

Max. PV Input Power: 15000 W (7500W per MPPT)

Max. Solar Charging Current: 240A (PV + Utility)

AC Input Voltage Range: 90 – 280 VAC

Parallel Capability: Up to 6 units

Dimensions (D×W×H): 420 × 335 × 142 mm

Net Weight: ~26.8 kg

Operating Temperature: -10°C to 50°C
